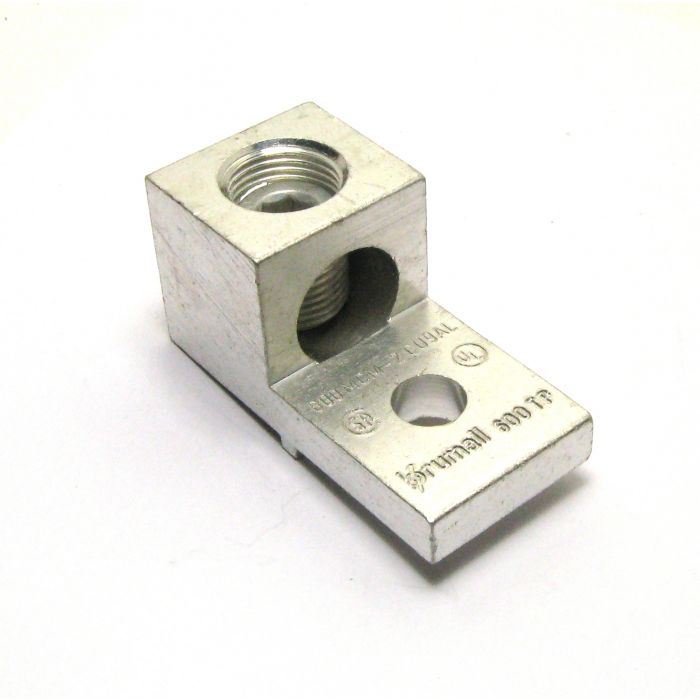

"600TP" Single Wire Lug (600 kcmil-2AWG)
"600TP" 600 kcmil-2 AWG wire range, TURN PREVENT RIB, 1 barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one 1/2" bolt mounting hole.
UL Listed, CSA Certified. BMC brand. Made in the USA from domestic and imported parts..
- Buy 32 for $7.74 each and save 26%
- Buy 98 for $5.81 each and save 44%
"600TP" 600 kcmil-2 AWG wire range, TURN PREVENT RIB, 1 barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one 1/2" bolt mounting hole , UL Listed, CSA Certified. Brumall brand. Made in the USA from domestic and imported parts..
Convenient inspection window to visually inspect full conductor insertion
Made with 6061-T6 aluminum to provide maximum electrical contact and performance
Electro tin-plated, to protect against corrosion
Plated aluminum screw provides durable long lasting contact between the conductor and connector
 |
| For More Information Click the Icons Below | |||||
 |
 |
 |
 |
RoHS 10/10 |
|
|
600MCM-2 CU9AL
|
550 IN LBS.
|
| 420 Amp 75C Cu Wire |
|
475 Amp 90C Cu Wire
|
|
340 Amp 75C Al Wire
|
|
385 Amp 90C Al Wire
|
| SKU | 600TP |
|---|---|
| Number of Wires | 1 Wire |
| Condition | New |
| AWG Wire Range | 600 kcmil - 4 AWG |
| FLEX Wire Range | No FLEX Wire |
| Screw Type | Hex Socket |
| CSA Canadian Standards Association Certified | Yes |
| UL | UL Listed (UL) |
| Meets RoHS | Yes |
