2S2/0-TP-STK-BLANK-SLT No Mounting Hole (2/0-14 AWG) Dual Wire Stacker Lug
- Buy 90 for $2.83 each and save 26%
- Buy 350 for $2.12 each and save 44%

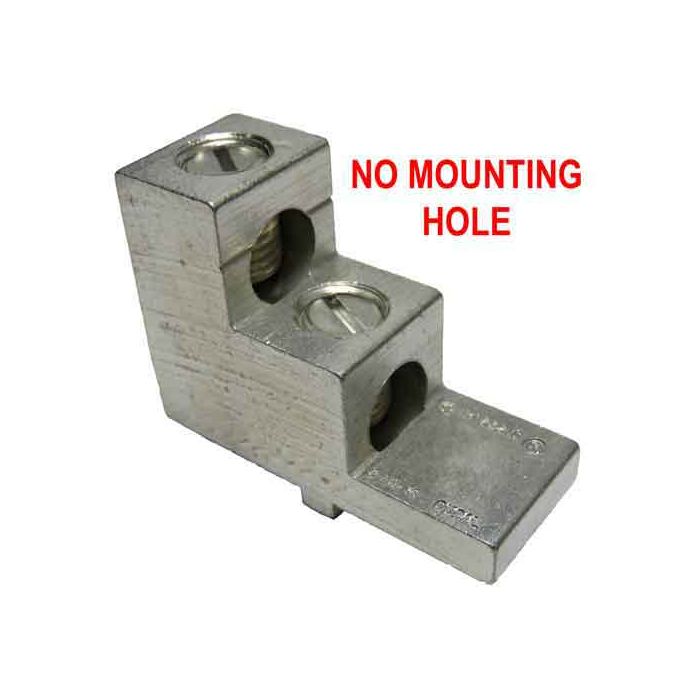

Drill your own Mounting Holes!
This lug does not have mounting holes. You can decide where, how many, and what size holes you need for your own applications!
Mounting holes must be drilled by the customer per UL and CSA requirements. For drilling and modifying mounting holes see the Guide for Field Drilling Mounting Holes and the 2S2/0-TP-STK-BLANK Print.
"2S2/0-TP-STK-BLANK-SLT" 2/0 AWG Double wire lug, 2/0-14 AWG wire range, and FLEX wire, 1/0-14 AWG, G-K including mm2 class 5, stacker type, two tier lug, double barrel, aluminum or copper wire, CU9AL, 90C temperature rating, UL Listed at 600v - acceptable for use through 2000v, CSA Certified. Shipped with regular slotted screw or TUFF SLOT™ closed slot which guides driver bit for rapid assembly (subject to availability). TUFF SLOT™ is a trademark of IHI Connectors®. International Hydraulics Inc. Brand. Made in the USA from domestic and imported parts. UL & CSA Approved for FLEX wire Class G-K sizes 1/0-14 AWG
|For More Information Click the Icons Below|
|Number of Wires||2 Wires|
|AWG Wire Range||2/0 - 14 AWG|
|FLEX Wire Range||1/0-14 AWG|
|Screw Type||Hex Socket|
|CSA Canadian Standards Association Certified||Yes|
|UL||UL Listed (UL)|
