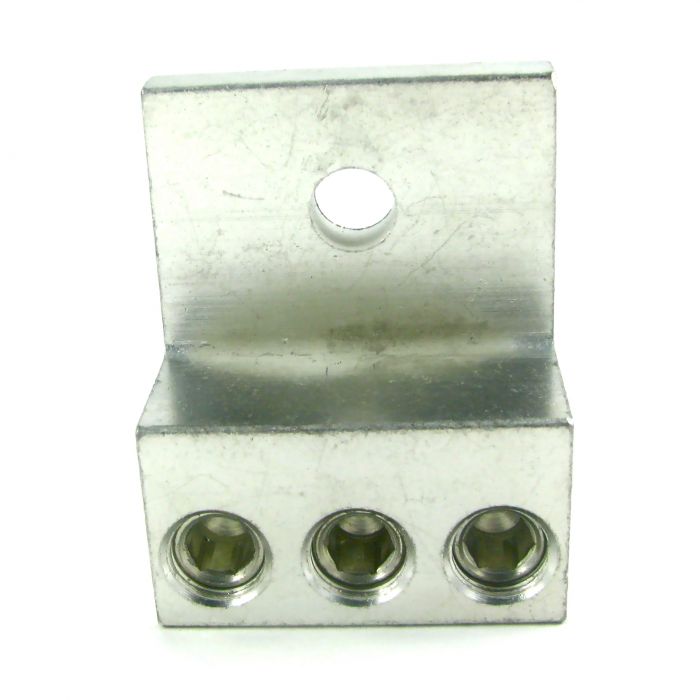

3S250TP Triple Barrel Wire Lugs Turn Prevent Rib (250 kcmil (4/0 AWG)-6 AWG)
In stock
SKU
3S250TP
Three barrel tin plated aluminum wire lug for use with 250 kcmil (4/0 AWG)-6 AWG wire. This single barrel lug can be used with aluminum or copper wire. NEMA mounting holes and spacing; this is not a NEMA tested part,
$17.75
- Buy 20 for $13.19 each and save 26%
- Buy 55 for $9.90 each and save 44%
NEMA mounting holes and spacing; this is not a NEMA tested part,
Convenient inspection window to visually inspect full conductor insertion
Made with 6061-T6 aluminum to provide maximum electrical contact and performance
Electro tin-plated, to warrant against corrosion
Plated aluminum or steel screw provides durable long lasting contact between the conductor and connector
Use of Ferrules (UL Listed) on 3/0-6 AWG
Wire Size to Torque Rating:
250MCM-6 - 350 Inch LBS.
For More Information Click the Icons Below | ||||||
RoHS 10/10 |
SKU | 3S250TP |
---|---|
Number of Wires | 3 Wires |
Condition | New |
AWG Wire Range | 250 kcmil - 6 AWG |
FLEX Wire Range | 3/0-6 AWG |
Screw Type | Hex Socket |
CSA Canadian Standards Association Certified | Yes |
UL | UL Listed (UL) |
Meets RoHS | Yes |
