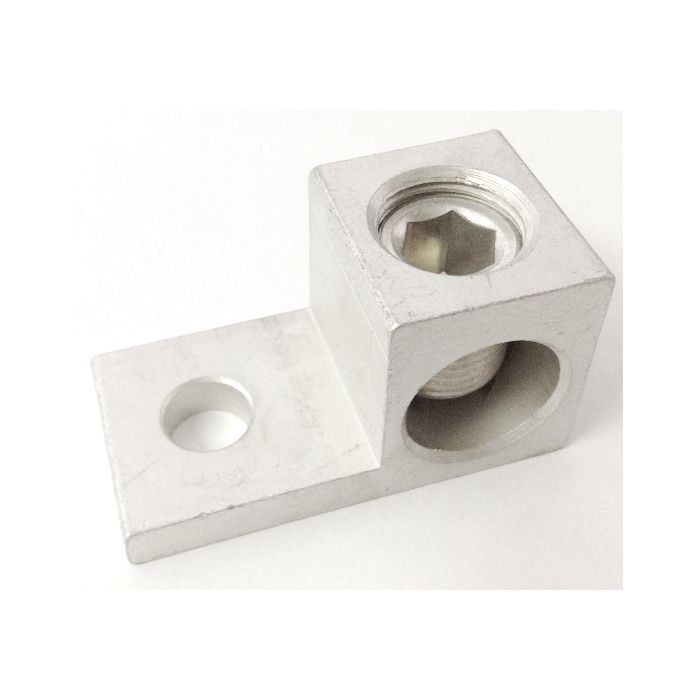

"S600-53-63-SE" Single Wire, Side Entrance Lug (600 kcmil-4 AWG) & FLEX wire (444 kcmil-2 AWG)
In stock
SKU
S600-53-63-SE
600 kcmil-4 AWG wire range, and FLEX wire, 444 kcmil-2 AWG, class G-K including mm2 class 5, 90 degree, 90C temperature rating, one 1/2" bolt mounting hole, NEMA mounting holes and spacing; this is not a NEMA tested part, with side entrance.
UL Listed, CSA Certified. IHI brand.
UL & CSA Approved for
FLEX wire Class G-K sizes 444 kcmil-2 AWG
$7.48
- Buy 50 for $5.56 each and save 26%
- Buy 150 for $4.17 each and save 44%
"S600-53-63-SE" 4 - 600 kcmil AWG wire range, and FLEX wire, 444 kcmil-2 AWG, class G-K including mm2 class 5, 90 degree, SIDE WIRE ENTRY HOLE, 1 barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one 1/2" bolt mounting hole, NEMA mounting holes and spacing; this is not a NEMA tested part, UL Listed, CSA Certified. IHI brand.
Use of Ferrules (UL Listed) on 444 kcmil-2 AWG
Convenient inspection window to visually inspect full conductor insertion
Made with 6061-T6 aluminum to provide maximum electrical contact and performance
Electro tin-plated, to protect against corrosion
Plated aluminum screw provides durable long lasting contact between the conductor and connector
Made with 6061-T6 aluminum to provide maximum electrical contact and performance
Electro tin-plated, to protect against corrosion
Plated aluminum screw provides durable long lasting contact between the conductor and connector
 |
| For More Information Click the Icons Below | ||||||
 |
 |
 |
 |
 |
|
RoHS 10/10 |
B&C Wire Size & Torque Rating
|
600kcmil-4 AWG
|
500 IN LBS.
|
Class G-K Flex Wire Size & Torque Rating
|
444kcmil-2 AWG
|
500 IN LBS.
|
| 420 Amp 75C Cu Wire |
|
475 Amp 90C Cu Wire
|
|
340 Amp 75C Al Wire
|
|
385 Amp 90C Al Wire
|
| SKU | S600-53-63-SE |
|---|---|
| Number of Wires | 1 Wire |
| Condition | New |
| AWG Wire Range | 600 kcmil - 4 AWG |
| FLEX Wire Range | 444 kcmil-2 AWG |
| Screw Type | Hex Socket |
| CSA Canadian Standards Association Certified | Yes |
| UL | UL Listed (UL) |
| Meets RoHS | Yes |
