"S4" Single Wire Lugs (14-4 AWG)
In stock
SKU
S4

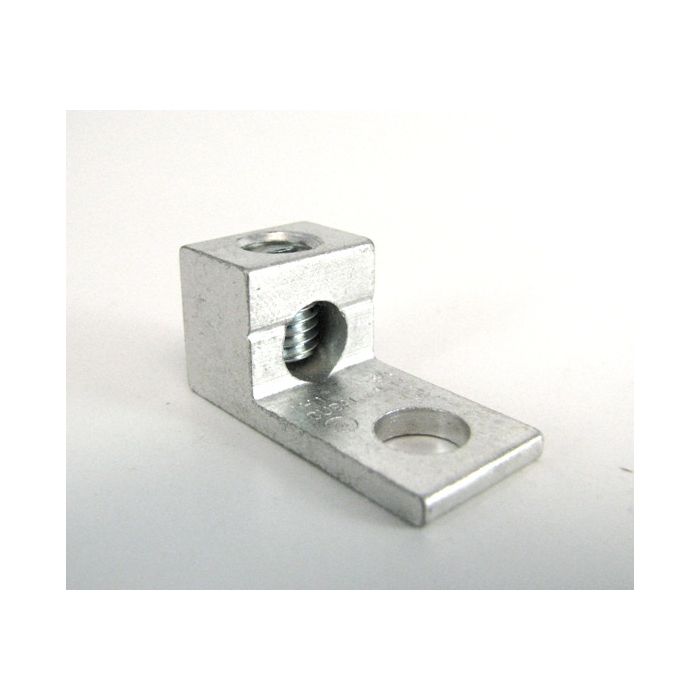

One barrel tin plated aluminum wire lug for use with 14-4 AWG wire. This single barrel lug can be used with aluminum or copper wire. Convenient 1/4" mounting hole for easy installation.
UL Listed, CSA Certified. Made in the USA from domestic and imported parts.
$0.66
- Buy 670 for $0.49 each and save 26%
- Buy 2000 for $0.37 each and save 44%
"S4" 14-4 AWG wire range (#12 & 14 stranded wire), 1/2" wide, 1 barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole , UL Listed, CSA Certified. 1/4" mounting bolt hole. IHI brand.
Convenient inspection window to visually inspect full conductor insertion
Made with 6061-T6 aluminum to provide maximum electrical contact and performance
Electro tin-plated, to warrant against corrosion
Plated aluminum or steel screw provides durable long lasting contact between the conductor and connector
Made with 6061-T6 aluminum to provide maximum electrical contact and performance
Electro tin-plated, to warrant against corrosion
Plated aluminum or steel screw provides durable long lasting contact between the conductor and connector
For More Information Click the Icons Below | ||||||
RoHS 9/10 |
B&C Wire Size & Torque Rating
4-6 AWG
|
35 IN LBS.
|
8 AWG
|
25 IN LBS.
|
10-14 AWG
|
20 IN LBS.
|
85 Amp 75C Cu Wire |
95 Amp 90C Cu Wire |
65 Amp 90C Cu Wire |
75 Amp 90C Cu Wire |
SKU | S4 |
---|---|
Number of Wires | 1 Wire |
Condition | New |
AWG Wire Range | 4 - 14 AWG |
FLEX Wire Range | No FLEX Wire |
Screw Type | Slotted Screw |
CSA Canadian Standards Association Certified | Yes |
UL | UL Listed (UL) |
Meets RoHS | Yes |
