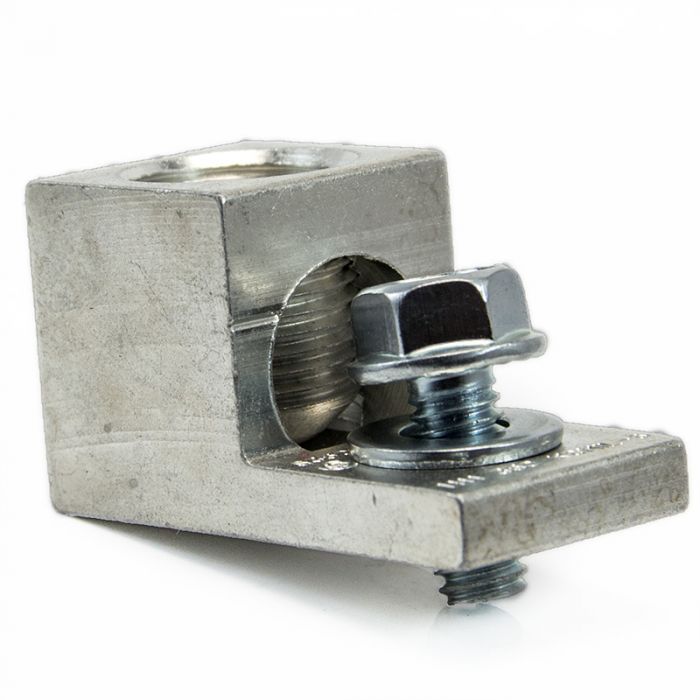

S350-KIT for Power Distribution Lugs
In stock
SKU
S350-KIT
To be ordered with the 36S4-3 or 24S4-3 power distribution kits.
6 - 350 kcmil AWG wire lug with hex cap screw and washer.
$6.25
- Buy 100 for $4.65 each and save 26%
- Buy 150 for $3.49 each and save 44%
- Buy 300 for $3.14 each and save 50%
Supplied for the 36S4-3-S350-KIT or 24S4-3-S350-KIT.
(x1) S350 and (x1) 5/16-18 UNC x ¾ long Steel zinc plated RoHS hex head cap screw and (x1) 5/16 SAE flat washer steel zinc plated RoHS.
"S350" Single Wire Lugs (350 kcmil-6 AWG) & FLEX wire (#4 AWG-#262 kcmil).
350 kcmil-6 AWG wire range, and FLEX wire class G-K including mm2 class 5, 1 barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole of .343 inch dia 5/16" bolt, UL Listed, CSA Certified. IHI brand.
Use of Ferrules (UL Listed) on 262 kcmil-4 AWG
| This part is designed to be cutomized with these other options: |
 |
UL508A Information on Standoff Insulators
600 Volt Insulator | 2000 Volt Insulator | 24 Wire Lug, 14-4 AWG | 36 Wire Lug, 14-4 AWG
| For More Information Click the Icons Below | |||||||
 |
 |
 |
 |
 |
|
 |
RoHS 10/10 |
| SKU | S350-KIT |
|---|---|
| Number of Wires | 1 Wire |
| Condition | New |
| AWG Wire Range | 350 kcmil - 6 AWG |
| FLEX Wire Range | 262 kcmil-4 AWG |
| Screw Type | 5/16-18 UNC Hex Washer Head Screw & 5/16 SAE Flat Washer |
| CSA Canadian Standards Association Certified | Yes |
| UL | UL Listed (UL) |
| Meets RoHS | Yes |
