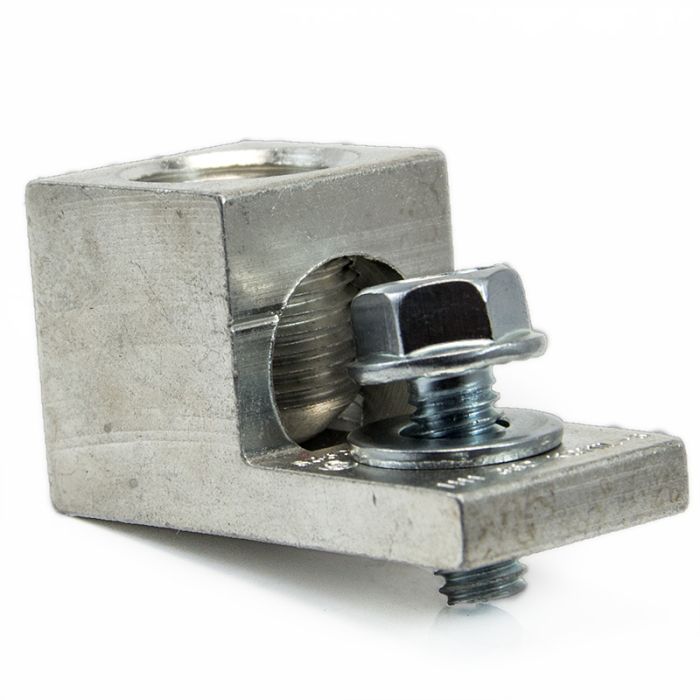

S350-KIT for Power Distribution Lugs
To be ordered with the 36S4-3 or 24S4-3 power distribution kits.
6 - 350 kcmil AWG wire lug with hex cap screw and washer.
- Buy 100 for $4.43 each and save 26%
- Buy 150 for $3.32 each and save 44%
- Buy 300 for $2.99 each and save 50%
Supplied for the 36S4-3-S350-KIT or 24S4-3-S350-KIT.
(x1) S350 and (x1) 5/16-18 UNC x ¾ long Steel zinc plated RoHS hex head cap screw and (x1) 5/16 SAE flat washer steel zinc plated RoHS.
"S350" Single Wire Lugs (350 kcmil-6 AWG) & FLEX wire (#4 AWG-#262 kcmil).
350 kcmil-6 AWG wire range, and FLEX wire class G-K including mm2 class 5, 1 barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole of .343 inch dia 5/16" bolt, UL Listed, CSA Certified. IHI brand.
Use of Ferrules (UL Listed) on 262 kcmil-4 AWG
|This part is designed to be cutomized with these other options:|
UL508A Information on Standoff Insulators
|For More Information Click the Icons Below|
|Number of Wires||1 Wire|
|AWG Wire Range||350 kcmil - 6 AWG|
|FLEX Wire Range||262 kcmil-4 AWG|
|Screw Type||5/16-18 UNC Hex Washer Head Screw & 5/16 SAE Flat Washer|
|CSA Canadian Standards Association Certified||Yes|
|UL||UL Listed (UL)|
