"S2" Single Wire Lugs (14-2 AWG)
In stock
SKU
S2

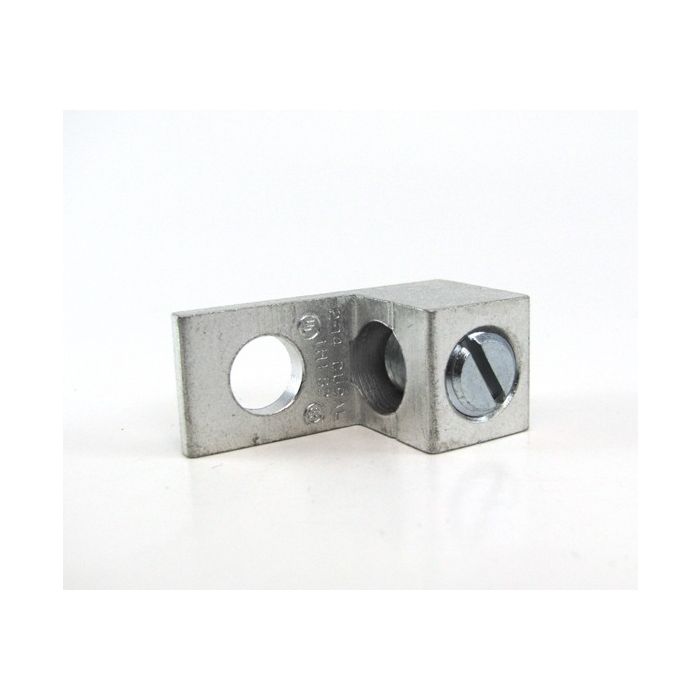

One barrel tin plated aluminum wire lug for use with 14-2 AWG wire. This single barrel lug can be used with aluminum or copper wire. Convenient 1/4" mounting hole for easy installation.
UL Listed, CSA Certified.
Made in the USA from domestic and imported parts.
$1.09
- Buy 700 for $0.81 each and save 26%
- Buy 2000 for $0.61 each and save 44%
- Buy 4000 for $0.55 each and save 50%
"S2" 14-2 AWG wire range , 1 barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole, UL Listed, CSA Certified. 1/4" mounting bolt hole. IHI brand.
- Convenient inspection window to visually inspect full conductor insertion
- Made with 6061-T6 aluminum to provide maximum electrical contact and performance
- Electro tin-plated, to warrant against corrosion
- Plated aluminum or steel screw provides durable long lasting contact between the conductor and connector
#8 Mounting Screw hole USEFUL FOR PCB & SMALL SCREW or RIVET MOUNTING
 |
| For More Information Click the Icons Below | ||||||
 |
 |
 |
 |
 |
 |
RoHS 10/10 |
B&C Wire Size & Torque Rating
| 2-4 AWG | 50 Inch LBS. |
| 6-10 AWG | 40 Inch LBS. |
| 12-14 AWG | 15 Inch LBS. |
| 115 Amp 75C Cu Wire |
| 130 Amp 90C Cu Wire |
| 90 Amp 75C Al Wire |
| 100 Amp 90C Al Wire |
| SKU | S2 |
|---|---|
| Number of Wires | 1 Wire |
| Condition | New |
| AWG Wire Range | 2 - 14 AWG |
| FLEX Wire Range | 4-12 AWG |
| Screw Type | Slotted Screw |
| CSA Canadian Standards Association Certified | Yes |
| UL | UL Listed (UL) |
| Meets RoHS | Yes |
