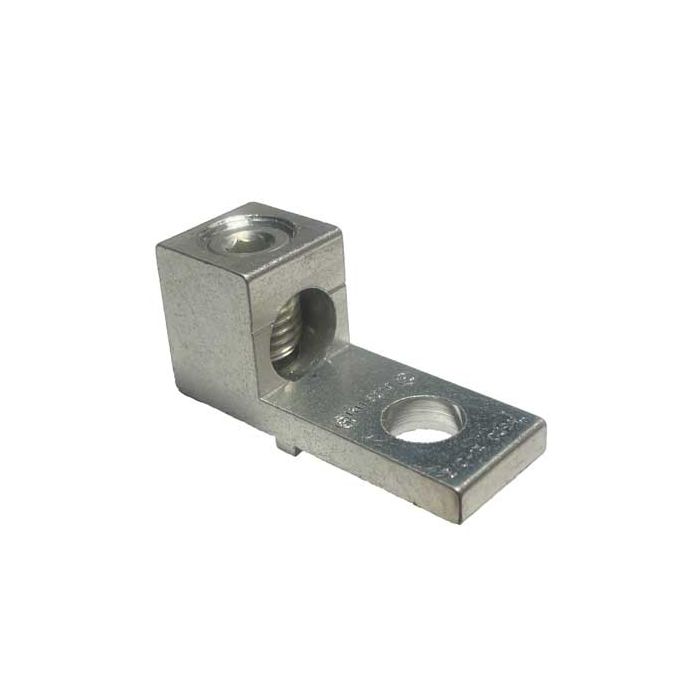

"S2/0-TPEX-36-49-HEX" Single Barrel Mechanical Lug 2/0-14 AWG
In stock
SKU
S2-0-TPEX-36-49-HEX
2/0 AWG Single wire lug, 2/0-14 AWG wire range, and FLEX, AWG 1/0-14, CU9AL, anti-rotation rib (turn prevent), 3/16" Hex Socket Screw, UL Listed, CSA Certified. 5/16" bolt.
$2.12
- Buy 140 for $1.57 each and save 26%
- Buy 1000 for $1.18 each and save 44%
"S2/0-TPEX-36-49-HEX" 2/0 AWG Single wire lug, 2/0-14 AWG wire range, and FLEX, AWG 1/0-14, wire class G-K including mm2 class 5, single barrel, aluminum or copper wire, CU9AL, 90C temperature rating, (alternate 120in-lb torque, 75C, CU7AL, cULus - see agency label), one mounting hole with anti-rotation rib (turn prevent) , 3/16" Hex Socket Screw, UL Listed at 600v - acceptable for use through 2000v, Canada Certified. 5/16" bolt. International Hydraulics Inc® brand. Made in the USA from domestic and imported parts
 |
| For More Information Click the Icons Below | ||||
 |
 |
 |
 |
RoHS 10/10 |
| SKU | S2-0-TPEX-36-49-HEX |
|---|---|
| Category No. | S2/0 |
| Style No. | ALL |
| Number of Wires | 1 Wire |
| Condition | New |
| AWG Wire Range | 2/0 - 14 AWG |
| FLEX Wire Range | 1/0-14 AWG |
| Screw Type | Aluminum Hex Socket |
| CSA Canadian Standards Association Certified | Yes |
| UL | UL Listed (UL) |
| Meets RoHS | Yes |
