"S1/0-HEX-M" Single Wire Lugs (1/0-14) & FLEX Wire (1-8 AWG)
In stock
SKU
S1/0-HEX-M

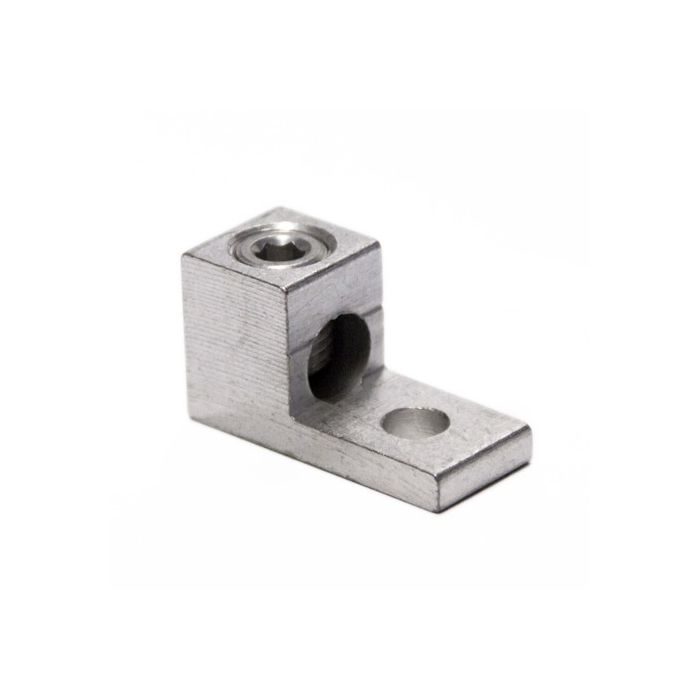

One barrel tin plated aluminum metric wire lug for use with 1/0-14 AWG wire. This single barrel lug can be used with aluminum or copper wire. This metric lug uses a 5mm hex set screw. Convenient 6mm (1/4") mounting hole for easy installation.
UL & CSA Approved for Multiple Wires
2X #14 to 2X #4 and FLEX wire Class G-K sizes 1-8 AWG
2X #14 to 2X #4 and FLEX wire Class G-K sizes 1-8 AWG
$1.26
- Buy 277 for $0.93 each and save 26%
- Buy 1000 for $0.70 each and save 44%
"S1/0-HEX-M" 1/0-14 AWG wire range, Multiple (dual) Class B/C wires, and FLEX wire class G-K including mm2 class 5,1 barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole, METRIC 5mm Hex Socket screw, UL Listed, CSA Certified. 1/4" or 6mm bolt mounting hole. IHI brand.
Use of Ferrules (UL Listed) on 1-8 AWG
For More Information Click the Icons Below | ||||||
RoHS 10/10 |
- Convenient inspection window to visually inspect full conductor insertion
- Made with 6061-T6 aluminum to provide maximum electrical contact and performance
- Electro tin-plated, to warrant against corrosion
- Plated aluminum or steel screw provides durable long lasting contact between the conductor and connector. 5mm Metric Hex Socket Screw. METRIC 5mm hex screw key.
SKU | S1/0-HEX-M |
---|---|
Number of Wires | 1 Wire |
Condition | New |
AWG Wire Range | 1/0 - 14 AWG |
FLEX Wire Range | 1-8 AWG |
Screw Type | Hex Socket |
CSA Canadian Standards Association Certified | Yes |
UL | UL Listed (UL) |
Meets RoHS | Yes |
