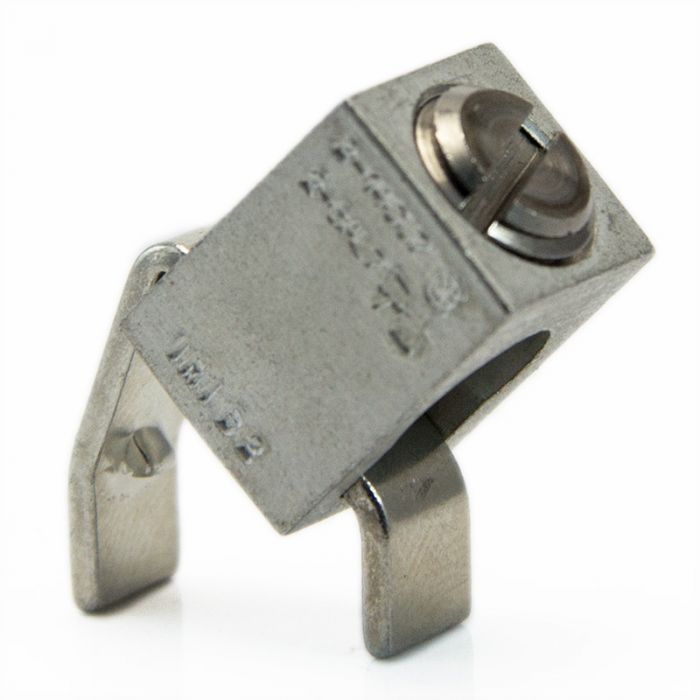

B2A-PCB-45-175-SS Solder Mounted Wire Lug for PCB's
(2)3-14 AWG, 115A/100A AMP, slotted set screw. 2 legs (.24X.05”) with a 0.175" (4.4mm) PCB penetration. Top wire, and screw entrance at 45 degrees.
Contact sales@mechanicallugs.com for pricing and availability.
UL RECOGNIZED
CSA CERTIFIED
CU7AL
- Buy 380 for $1.19 each and save 26%
- Buy 2000 for $0.90 each and save 44%
- Buy 4000 for $0.81 each and save 50%
B2A-PCB-45-175-SS: (2)3-14 AWG, 115A/100A AMP, slotted set screw. 2 legs (.24X.05€) with a 0.175" (4.4mm) PCB penetration. Top wire, and screw entrance at 45 degrees.
Body and Staple THT Types: Wave and reflow solderable high current PCB wire terminal lug / connector for high amp power applications. THT (Through Hole Technology). Copper or aluminum wire, stranded and solid wire per UL486 wire code. Solid copper bus staple for tens of micro ohms range of copper to copper high conductivity, low resistance current path. Exceeds IEC volt drop test standards.
| For More Information Click the Icons Below | |||||||
 |
 |
 |
 |
 |
 |
 |
RoHS 10/10 |
| SKU | B2A-PCB-45-175-SS |
|---|---|
| Number of Wires | 1 Wire |
| Condition | New |
| AWG Wire Range | 4 - 14 AWG |
| FLEX Wire Range | No FLEX Wire |
| Screw Type | Stainless Steel Slotted Screw |
| CSA Canadian Standards Association Certified | Yes |
| UL | UL Recognized (UR) |
| Meets RoHS | Yes |
