"B2A-NM-PCB-BUSMOUNT-HEX-KIT" 2-14 AWG
In stock
SKU
B2A-NM-PCB-BUSMOUNT-HEX-KIT

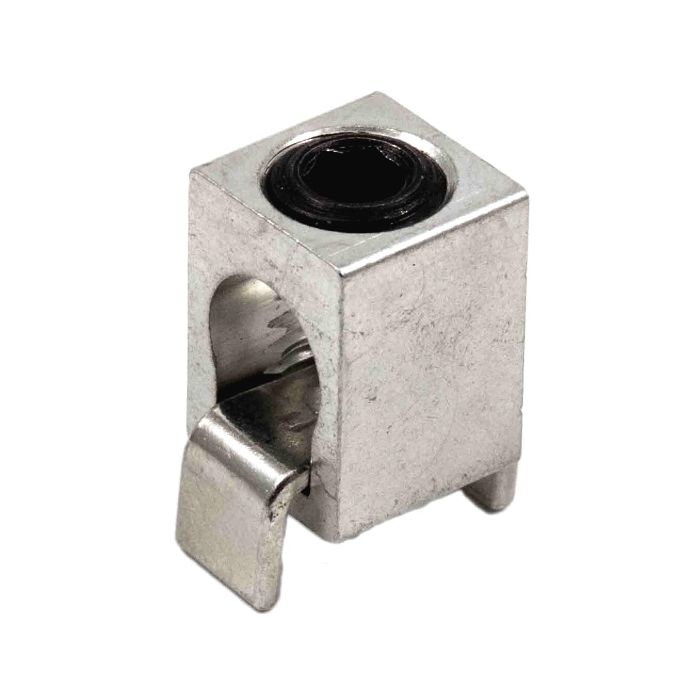

B2A-NM-PCB-BUSMOUNT-HEX-KIT: 2-14 AWG, 115A/100A AMP, short HEX set screw. 2 legs (.24X.05”) with a 0.16" (4mm) PCB penetration.
$1.17
- Buy 495 for $0.87 each and save 26%
- Buy 2000 for $0.65 each and save 44%
- Buy 4000 for $0.58 each and save 50%
B2A-NM-PCB-BUSMOUNT-HEX-KIT: 2-14 AWG, 115A/100A AMP, short HEX set screw. 2 legs (.24X.05”) with a 0.16" (4mm) PCB penetration.
Body and Staple THT Types
Wave and reflow solderable high current PCB wire terminal lug / connector for high amp power applications. THT (Through Hole Technology). Copper or aluminum wire, stranded and solid wire per UL486 wire code. Solid copper bus staple for tens of micro ohms range of copper to copper high conductivity, low resistance current path. Exceeds IEC volt drop test standards.
| For More Information Click the Icons Below | ||||||
 |
 |
 |
 |
NO UL,UR |
NO CSA |
RoHS 10/10 |
| SKU | B2A-NM-PCB-BUSMOUNT-HEX-KIT |
|---|---|
| Number of Wires | 1 Wire |
| Condition | New |
| AWG Wire Range | 2 - 14 AWG |
| FLEX Wire Range | No FLEX Wire |
| Screw Type | Hex Socket |
| CSA Canadian Standards Association Certified | No |
| UL | Not UL Listed or Recognized |
| Meets RoHS | Yes |
