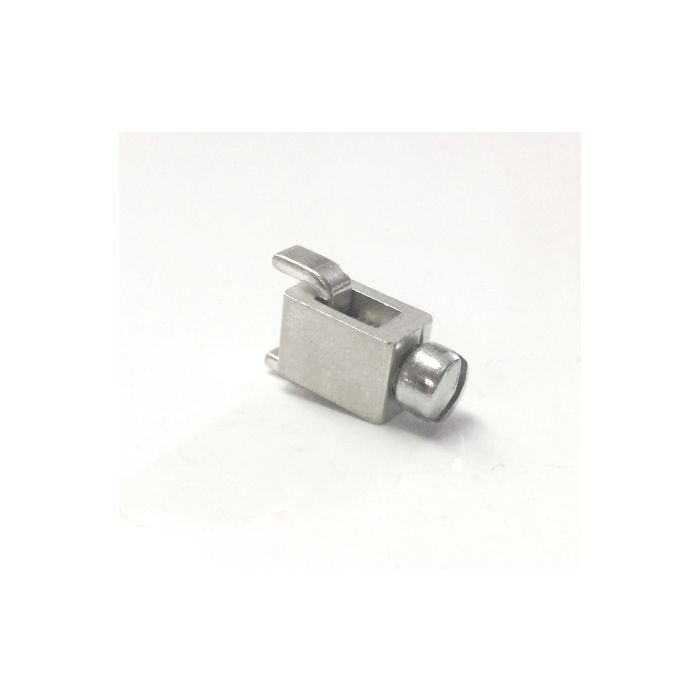

"B12-PCB" Solder Mounted Wire Lug for PCB's

High Amp PCB Connectors, ideal for electronic power inverters, solar energy controllers, battery charger controllers, wind energy controllers, high wattage heater controllers, current controllers, power supplies, lightning arresters, and any high amperage application with up to 100 amps per connector with properly sized printed circuit board layout.

Formerlly the B12-PCB-S

Detailed Related Product Chart

Image		PART No.		WIRE RANGE	MAX. CURRENT  (copper wire)	WIRE / SCREW ACCESS	SCREW DRIVE / HEAD	SCREW MAT'L	BUS MATERIAL	MOUNT STYLE	MOUNT
		B12-PCB		AWG 12-16   METRIC (3.31-1.31mm2)	20A	SIDE / TOP	SLOTTED HEAD	ZINC  PLATED  STEEL	TIN PLATED COPPER STAPLE,  SOLDERABLE	2 LEGS  .14X.063” (3.5X1.6mm)	0.12" 3.0mm penetration
*Other Optional Choices: CLICK PART NUMBER FOR DIRECT LINK.                                                               *Differences from main part, highlighted in yellow....
		B10-PCB		AWG 10-16   METRIC (4- 1.5mm2)	30A	SIDE / TOP	SLOTTED HEAD	ZINC  PLATED  STEEL	TIN PLATED COPPER STAPLE	.336X.14” (8.5X3.5mm) 1 LEG	0.10" 2.54mm penetration

For More Information Click the Icons Below
						NO CSA	RoHS 10/10
