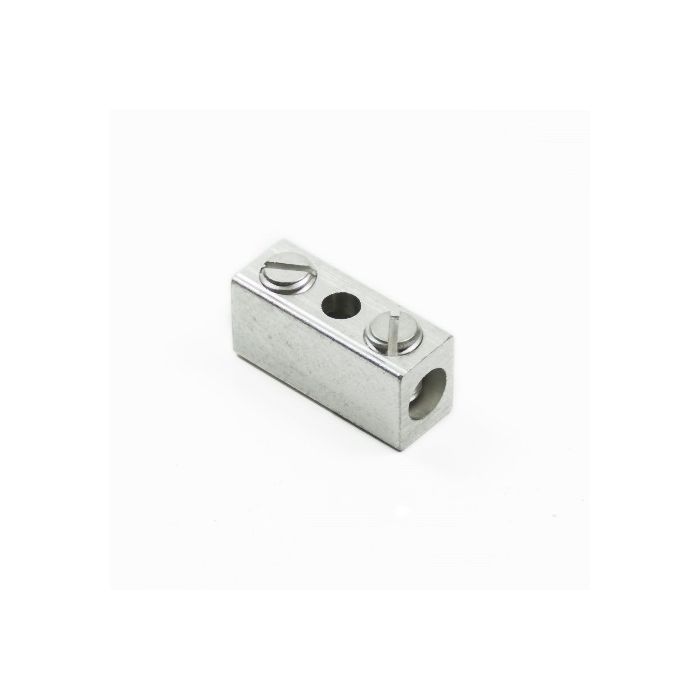

P2 Splicer Wire Lugs (14 - 2 AWG)
P2, Splicer Wire tin plated aluminum wire lugs for use with 14 - 2 AWG wire. This splicer lug can be used with aluminum or copper wire. These lugs can also be used as a reducer or splitter.
- Buy 350 for $0.97 each and save 26%
- Buy 1500 for $0.73 each and save 44%
"P2" 14 - 2 AWG wire range, singles, and multiples of wires: 2x #10, 2x #12 or 2x #14 wires, aluminum or copper wire, splicer or reducer CU7AL, 75C temperature rating, single #10 bolt clearance mounting hole or wire insertion "sight" hole, or wire stop hole, UL Listed. IHI brand. Made in the USA from domestic and imported parts.
____________________________________________________________________________
Convenient inspection window to visually inspect full conductor insertion
Made with 6061-T6 aluminum to provide maximum electrical contact and performance
Electro tin-plated, to warrant against corrosion
Plated aluminum or steel screw provides durable long lasting contact between the conductor and connector
For splicing two copper or aluminum wire of equal or different sizes
![]() |
For More Information Click the Icons Below | ||||||
![]() |
![]() |
![]() |
![]() |
NO CSA |
![]() |
![]() RoHS 10/10 |
2-3 AWG
|
40 IN LBS.
|
4-6 AWG
|
35 IN LBS.
|
8 AWG
|
30 IN LBS.
|
10-14 AWG | 25 IN LBS. |
SKU | P2 |
---|---|
Number of Wires | 2 Wires |
Condition | New |
AWG Wire Range | 2 - 14 AWG |
FLEX Wire Range | No FLEX Wire |
Screw Type | Slotted Screw |
CSA Canadian Standards Association Certified | No |
UL | UL Listed (UL) |
Meets RoHS | Yes |
