"T2/0 (1.03)" Single Wire Lugs (2/0-14 AWG)
In stock
SKU
T2/0

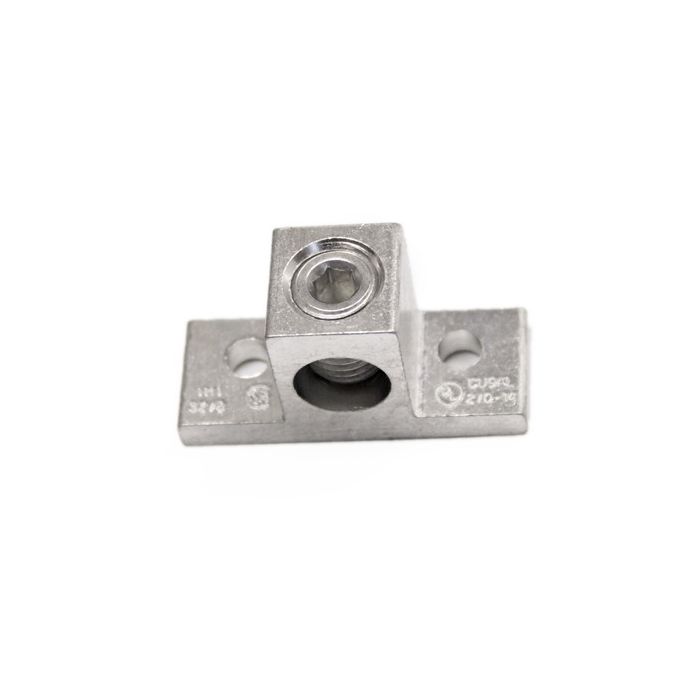

One barrel tin plated aluminum metric wire lug for use with 2/0-14 AWG wire. This single barrel lug can be used with aluminum or copper wire. Two convenient 10mm mounting hole for easy lug installation. This is a top hat style pressure terminal connector. Two mounting holes gives this lug anti rotation mounting benefit.
UL Recognized.
Not Listed for General Use.
Not CSA Certified.
$1.94
- Buy 230 for $1.44 each and save 26%
- Buy 750 for $1.08 each and save 44%
"T2/0 (1.03)" 2/0-14 AWG wire range , "Top Hat" style with two short mounting tangs. Dual rated, 1 barrel, aluminum or copper wire, CU7AL, 75C temperature rating, two (2) #10 mounting holes.UL Recognized. Not Listed for General Use. Not CSA Certified. IHI brand.
UL & CSA Approved for FLEX wire Class G-K sizes & mm2 class 5 #14-#1/0 AWG
OEM "UR" STYLE WITH TWO DRILLED MOUNTING HOLES FOR ANTI- ROTATIONAL MOUNTING
Convenient inspection window to visually inspect full conductor insertion
Made with 6061-T6 aluminum to provide maximum electrical contact and performance
Electro tin-plated, to warrant against corrosion
Plated aluminum or steel screw provides durable long lasting contact between the conductor and connector
Made with 6061-T6 aluminum to provide maximum electrical contact and performance
Electro tin-plated, to warrant against corrosion
Plated aluminum or steel screw provides durable long lasting contact between the conductor and connector
 |
| For More Information Click the Icons Below | ||||||
 |
 |
.jpg "Agency Label"){kind=small} |
 |
 |
|
RoHS 10/10 |
B&C Wire Size & Torque Rating
| 2/0-8 AWG | 120 IN LBS. |
| 175 Amp 75C or 90C Cu Wire | |
| 135 Amp 75C or 90C Al Wire | |
| SKU | T2/0 |
|---|---|
| Number of Wires | 1 Wire |
| Condition | New |
| AWG Wire Range | 2/0 - 8 AWG |
| FLEX Wire Range | 1/0-14 AWG |
| Screw Type | Hex Socket |
| CSA Canadian Standards Association Certified | No |
| UL | UL Recognized (UR) |
| Meets RoHS | Yes |
