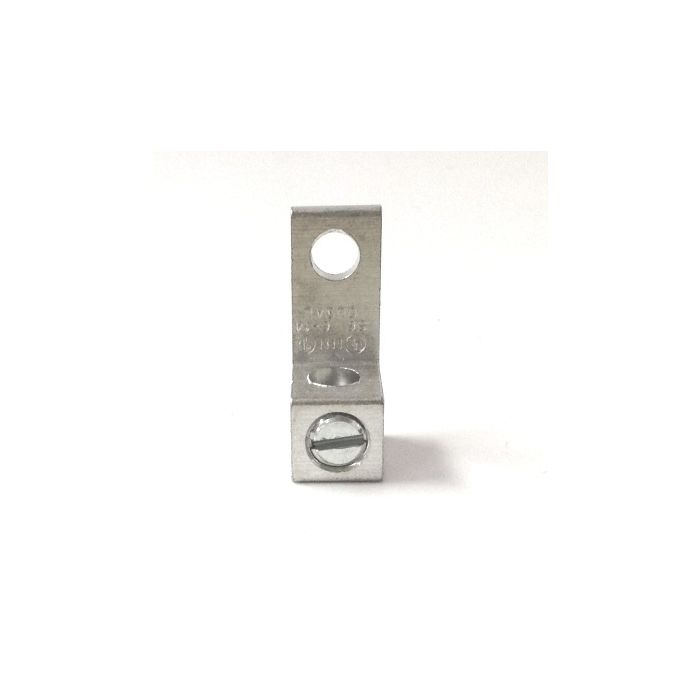

"S6-203" Single Wire Lugs (14-6 AWG)
In stock
SKU
S6-203
14-6 AWG wire range, Controlled Distance from hole to end of tang for anti-rotation. Grounding lug. Motor Grounding Lug. STANDARD 3/8" WIDE, M5 0r #10 BOLT.
UL Listed, CSA Certified.
Made in the USA from domestic and imported parts.
$0.62
- Buy 900 for $0.46 each and save 26%
- Buy 3000 for $0.35 each and save 44%
"S6-203" 14-6 AWG wire range , 3/8" wide, 1 barrel, aluminum or copper wire, CU9AL, 90C temperature rating, one mounting hole , UL Listed, CSA Certified. 0.203 dia. #10 or M5 mounting bolt hole. IHI brand. Controlled Distance from hole to end of tang for anti-rotation. Grounding lug. Motor Grounding Lug.
For More Information Click the Icons Below | |||||
RoHS 9/10 |
B&C Wire Size & Torque Rating
6 AWG
|
45 IN LBS.
|
8 AWG
|
40 IN LBS.
|
10-14 AWG
|
35 IN LBS.
|
65 Amp 75C Cu Wire
|
75 Amp 90C Cu Wire
|
50 Amp 75C Al Wire
|
60 Amp 90C Al Wire
|
SKU | S6-203 |
---|---|
Number of Wires | 1 Wire |
Condition | New |
AWG Wire Range | 6 - 14 AWG |
FLEX Wire Range | No FLEX Wire |
Screw Type | Slotted Screw |
CSA Canadian Standards Association Certified | Yes |
UL | UL Listed (UL) |
Meets RoHS | Yes |
