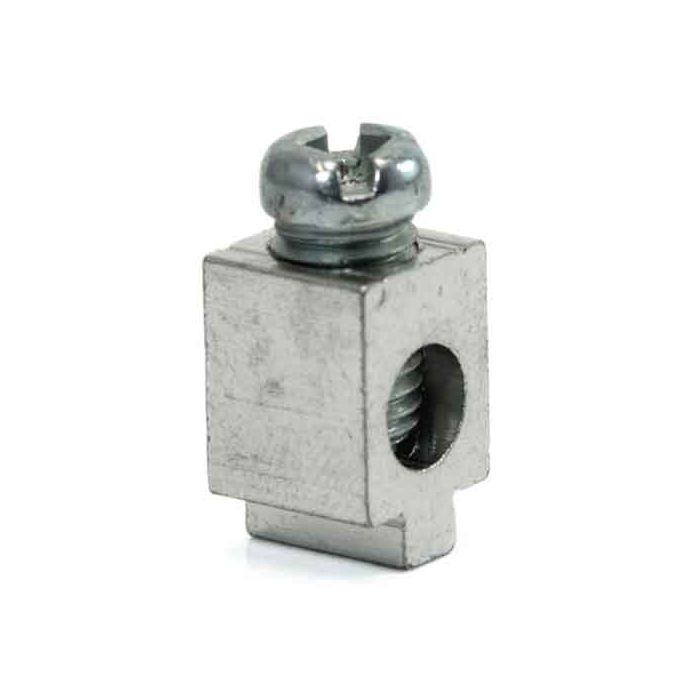

B6A-PCB-RS Solder Mounted Wire Lug for PCB's
- Buy 595 for $0.53 each and save 25%
- Buy 3750 for $0.40 each and save 44%
- Buy 7500 for $0.36 each and save 49%
6 AWG PCB wire lug, 6-16* AWG, 65 AMP, Slotted & Robertson Recess Head screw. Side wire, and side screw entrance.
One piece SMT / SMD Solderable Body Types
Wave and reflow solderable high current PCB wire terminal lug / connector for high amp power applications. SMT / SMD (Surface Mount Technology, Surface Mount Device). View Soldering Temperature Profiles here. Copper or aluminum wire, stranded and solid wire per UL486 wire code. Solid mass, high conductivity aluminum alloy body for tens of micro ohms range of resistance wire to foil conductivity, low resistance current path. Exceeds IEC volt drop test standards. Variety of wire binding screw options.
|For More Information Click the Icons Below|
All-in-One Miniature AWG #6 Solderable PCB lug with Stainless Steel Slotted Screw.
Detailed Related Product Chart
|Number of Wires||1 Wire|
|FLEX Wire Range||No FLEX Wire|
|Screw Type||Slotted Robertson Recess Head|
|CSA Canadian Standards Association Certified||No|
|UL||Not UL Listed or Recognized|
