"B4A-PCB-HEX" Solder Mounted Wire Lug for PCBs

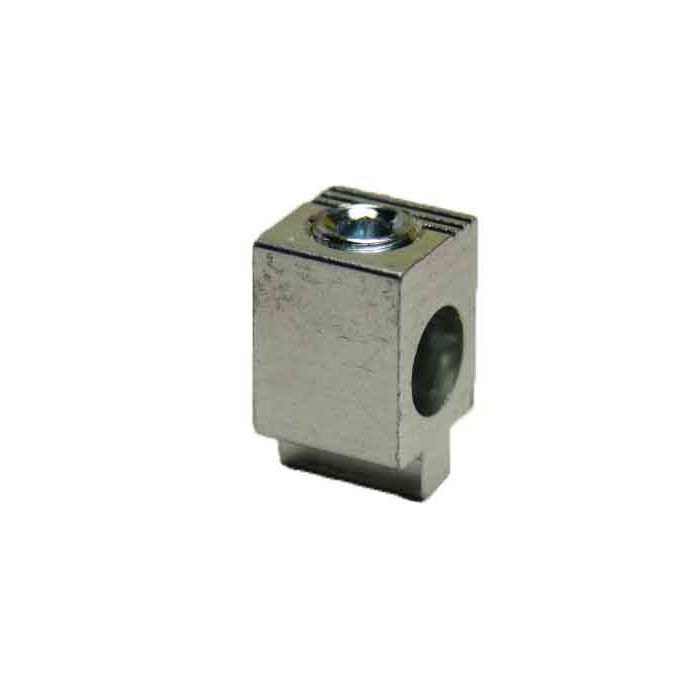

B4A-PCB-HEX: 4 AWG PCB wire lug, 4-14 AWG, 85 AMP, HEX socket set screw. 1 leg at .375X.14€with a .13" (3.3mm) PCB penetration. Side wire, and top screw entrance, 1/8€ HEX socket set screw. International Hydraulics Inc. brand.

One piece Body THT Types

 Wave and reflow solderable high current PCB wire terminal lug / connector for high amp power applications. THT (Through Hole Technology). Copper or aluminum wire, stranded and solid wire per UL486 wire code. Solid mass, high conductivity aluminum alloy body for tens of micro ohms range of resistance wire to foil conductivity, low resistance current path. Exceeds IEC volt drop test standards. Variety of wire binding screw options.

One piece SMT / SMD Solderable Body Types

 Wave and reflow solderable high current PCB wire terminal lug / connector for high amp power applications. SMT / SMD (Surface Mount Technology, Surface Mount Device).  View Soldering Temperature Profiles here. Copper or aluminum wire, stranded and solid wire per UL486 wire code. Solid mass, high conductivity aluminum alloy body for tens of micro ohms range of resistance wire to foil conductivity, low resistance current path. Exceeds IEC volt drop test standards. Variety of wire binding screw options.

Precuations when using SMT and SMT FAQ

Zinc plated steel screw, and integrated aluminum foot, tin plated, solderable

For More Information Click the Icons Below
		NO UL,UR				NO CSA	RoHS 10/10
