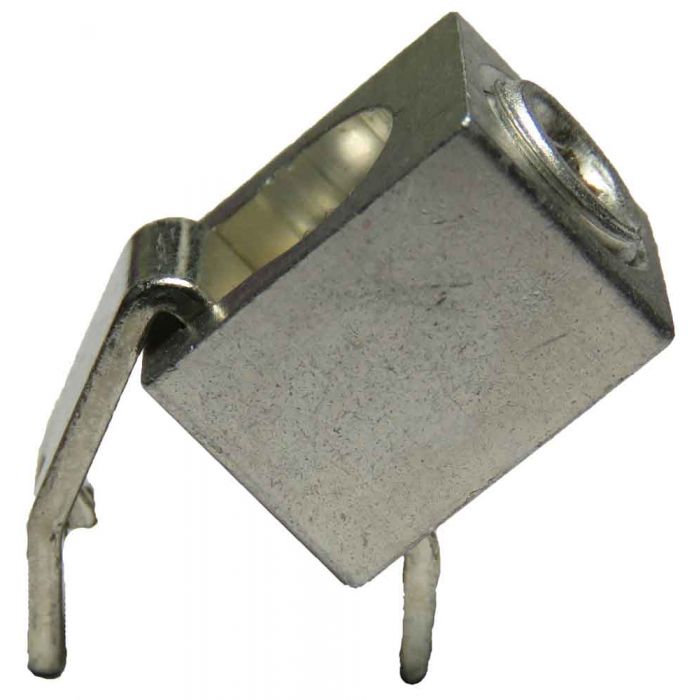

B2A9-PCB-45-175-HEX 90C Solder Mounted Wire Lug for PCB's
In stock
SKU
B2A9=PCB-45-175-HEX
(2)3-14 AWG, 130A/100A AMP, hex socket set screw. 2 legs (.24X.05”) with a 0.175" (4.4mm) PCB penetration. Side wire, and top screw entrance at 45 degrees.
UL RECOGNIZED
CU9AL
CU9AL
$1.16
- Buy 324 for $0.86 each and save 26%
- Buy 2000 for $0.65 each and save 44%
- Buy 4000 for $0.58 each and save 50%
B2A9-PCB-45-175-HEX: 2 AWG PCB wire lug, (2)3-14 AWG, 130A/100A AMP, hex socket set screw. 2 legs (.24X.05”) with a .175" (4.4mm) PCB penetration. Top wire, and screw entrance at 45 degrees. UL Recognized at 600v - acceptable for use through 2000v. IHI Connectors brand.
Body and Staple THT Types: Wave and reflow solderable high current PCB wire terminal lug / connector for high amp power applications. THT (Through Hole Technology). Copper or aluminum wire, stranded and solid wire per UL486 wire code. Solid copper bus staple for tens of micro ohms range of copper to copper high conductivity, low resistance current path. Exceeds IEC volt drop test standards.
| For More Information Click the Icons Below | ||||
 |
 |
 |
 |
RoHS 10/10 |
| SKU | B2A9=PCB-45-175-HEX |
|---|---|
| Number of Wires | 1 Wire |
| Condition | New |
| AWG Wire Range | 2 - 14 AWG |
| FLEX Wire Range | No FLEX Wire |
| Screw Type | Aluminum Hex Socket |
| CSA Canadian Standards Association Certified | Yes |
| UL | UL Recognized (UR) |
| Meets RoHS | Yes |
