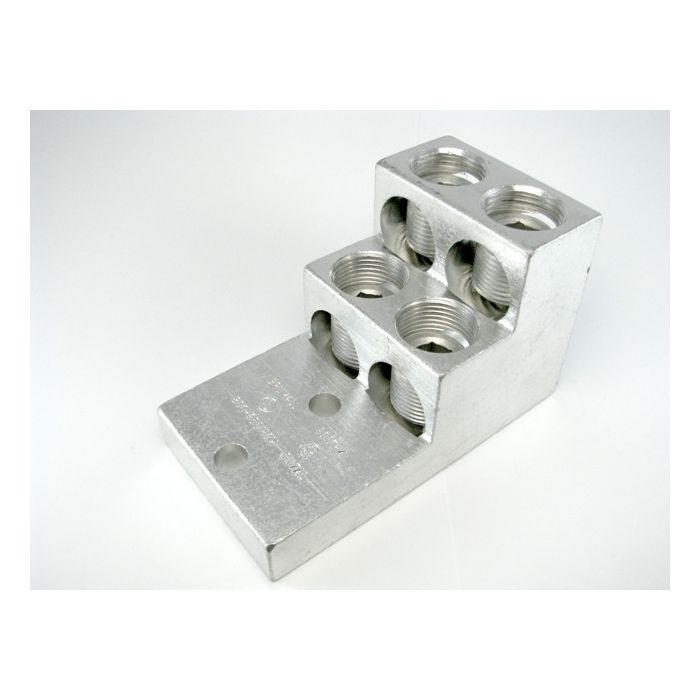

"800T-4" (300 - 800 kcmil AWG) Quadruple Wire Lug
In stock
SKU
800T-4
"800T4" 300 - 800 kcmil AWG wire range, panel Lug. Stacker type. Four barrel / wires (4 conductors) aluminum or copper wire, CU7AL, 75C temperature rating, two 2 mounting holes.
UL Listed, CSA Certified.
BMC brand. Made in the USA from domestic and imported parts..
$61.02
- Buy 6 for $45.36 each and save 26%
- Buy 20 for $34.02 each and save 44%
"800T-4" 300 - 800 kcmil AWG wire range, panel Lug. Stacker type. Four wires (4 conductors) aluminum or copper wire, CU7AL, 75C temperature rating, two 2 mounting holes , UL Listed, CSA Certified. Brumall brand. Made in the USA.
 |
Comparison of Switchgears, Switchboards, and Panelboards
| For More Information Click the Icons Below | |||||
 |
 |
 |
 |
 |
RoHS 10/10 |
Per Wire in Power Distribution or Collection Mode
| 490 Amp 75C or 90C Cu Wire | |
| 395 Amp 75C or 90c Al Wire |
| SKU | 800T-4 |
|---|---|
| Number of Wires | 4 Wires |
| Condition | New |
| AWG Wire Range | 800-300 kcmil |
| FLEX Wire Range | No FLEX Wire |
| Screw Type | Hex Socket |
| CSA Canadian Standards Association Certified | Yes |
| UL | UL Listed (UL) |
| Meets RoHS | Yes |
