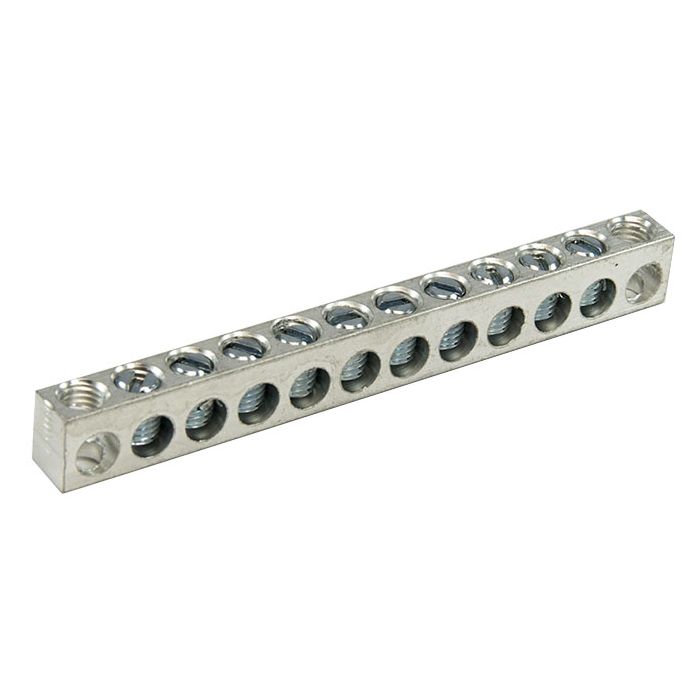

"4-12,1,12" 4-14 AWG Neutral/Ground Bars
In stock
SKU
4-12,1,12
$3.08
- Buy 130 for $2.29 each and save 26%
- Buy 550 for $1.72 each and save 44%
Neutral Bar (10) circuit , (2) #10 mounting hole wire range 4-14 AWG Neutral/Ground bar, Dual Rated, Aluminum & Copper wire, CU9AL 90C Rating, UL Recognized, CSA Certified.
Q. Can I use a ZMVV2 UL Recognized
(not ZMVV Listed) wire connector for grounding?
A. Only after further UL investigation for the mounting means and probably other €œConditions of Acceptability€ that are defined in the ZMVV2 Recognized file and with more delay and added evaluation cost. That is not normally considered worth the trouble if a Listed ZMVV wire pressure connector is available.
-CONSTRUCTION NOTES-
| The tolerance between mounting holes is +/-.015" |
| The mounting hole is .201 +.006/-.003. |
| The listed overall length of each bar is +/-.020 |
| Material is High Strength Tempered aluminum 6061 with conductivity approx. 43% IACS. |
| Aluminum body is Tin Plated to resist oxidation and galvanic corrosion. |
| Screws are Zinc Plated Steel with Trivalent (Cr+3) Chromate conversion top layer. |
| For More Information Click the Icons Below | |||||
 |
 |
%204-12,%201,%2012%20Agency%20Label.jpg "Agency Label"){kind=small} |
 |
 |
RoHS 10/10 |
| SKU | 4-12,1,12 |
|---|---|
| Number of Wires | 10 Wires |
| Condition | New |
| AWG Wire Range | 4 - 14 AWG |
| FLEX Wire Range | No FLEX Wire |
| Screw Type | Steel Slotted Screw |
| CSA Canadian Standards Association Certified | Yes |
| UL | UL Recognized (UR) |
| Meets RoHS | Yes |
