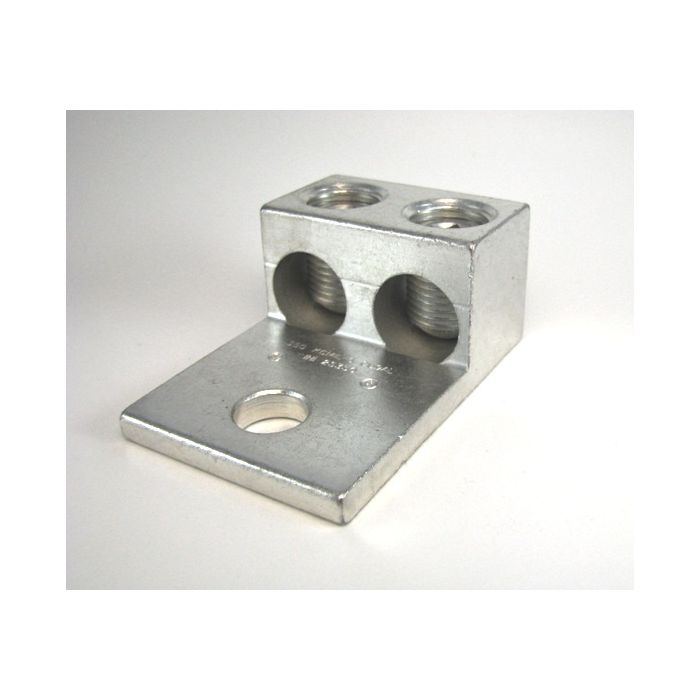

"2S350" Double Wire Lug (6 -350 kcmil AWG) & FLEX Wire (4 - 262kcmil)
In stock
SKU
2S350
2S350 350 kcmil-6 AWG wire range, 2 barrel, aluminum or copper wire, CU9AL, 90C temperature rating, single mounting hole, NEMA mounting holes and spacing; this is not a NEMA tested part, UL Listed, CSA Certified.
UL & CSA Approved for
FLEX wire Class G-K
sizes 262 kcmil-4 AWG
MADE IN THE USA
.png){kind=small}
$7.57
- Buy 48 for $5.63 each and save 26%
- Buy 125 for $4.22 each and save 44%
"2S350" 350 kcmil-6 AWG wire range, and FLEX wire, 262 kcmil-4 AWG, class G-K including mm2 class 5, 2 barrel, aluminum or copper wire, CU9AL, 90C temperature rating, single 1/2" bolt mounting hole, NEMA mounting holes and spacing; this is not a NEMA tested part, UL Listed, CSA Certified. Made in the USA.
Use of Ferrules (UL Listed) on 262 kcmil-4 AWG
Convenient inspection window to visually inspect full conductor insertion
Made with 6061-T6 aluminum to provide maximum electrical contact and performance
Electro tin-plated, to warrant against corrosion
Plated aluminum or steel screw provides durable long lasting contact between the conductor and connector
Made with 6061-T6 aluminum to provide maximum electrical contact and performance
Electro tin-plated, to warrant against corrosion
Plated aluminum or steel screw provides durable long lasting contact between the conductor and connector
 |
| For More Information Click the Icons Below | ||||||
 |
 |
 |
 |
 |
|
RoHS 10/10 |
| SKU | 2S350 |
|---|---|
| Number of Wires | 2 Wires |
| Condition | New |
| AWG Wire Range | 350 kcmil - 6 AWG |
| FLEX Wire Range | 262 kcmil-4 AWG |
| Screw Type | Hex Socket |
| CSA Canadian Standards Association Certified | Yes |
| UL | UL Listed (UL) |
| Meets RoHS | Yes |
