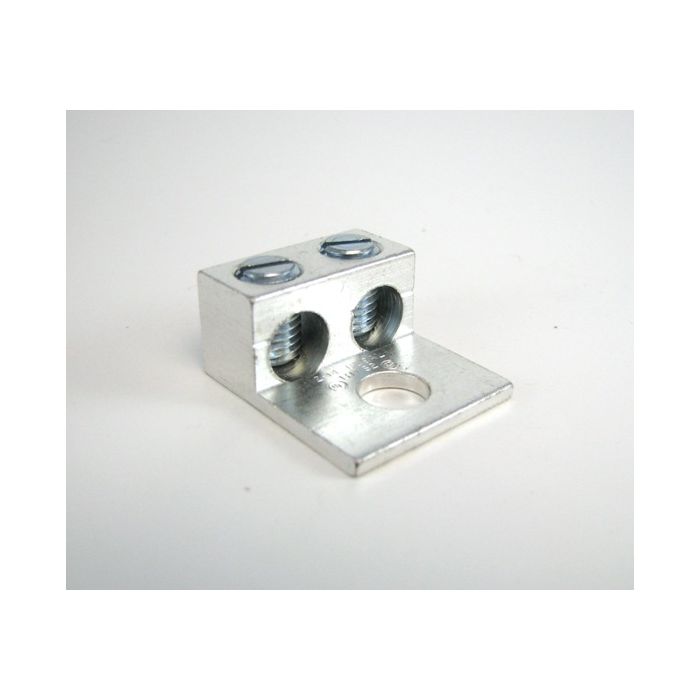

"2S2" Double Wire Lug (14 - 2 AWG)
2S2 14 - 2 AWG wire range, 2 barrel, aluminum or copper wire, CU9AL, 90C temperature rating, single 5/16" (8mm) dia. mounting hole.
Ref. UL White Book ZMVV section
Lugs sold individually.
- Buy 260 for $1.19 each and save 26%
- Buy 900 for $0.89 each and save 44%
- Convenient inspection window to visually inspect full conductor insertion.
- Made with 6061-T6 aluminum to provide maximum electrical contact and performance.
- Electro tin-plated, to protect against corrosion.
Plated aluminum screw provides durable long lasting contact between the conductor and connector. STANDARD SLOTTED SCREW.
Power Looping & Distribution.
|For More Information Click the Icons Below|
B&C Wire Size & Torque Rating
|2 - 4 AWG||50 in. lbs.|
|6 - 10 AWG||40 in lbs.|
|12 - 14 AWG||15 in lbs.|
115 Amp 75C Cu Wire
130 Amp 90C Cu Wire
90 Amp 75C Al Wire
100 Amp 90C Al Wire
Per Wire in Power Distribution or Collection Mode
|Number of Wires||2 Wires|
|AWG Wire Range||2 - 14 AWG|
|FLEX Wire Range||4-12 AWG|
|Screw Type||Slotted Screw|
|CSA Canadian Standards Association Certified||Yes|
|UL||UL Listed (UL)|
