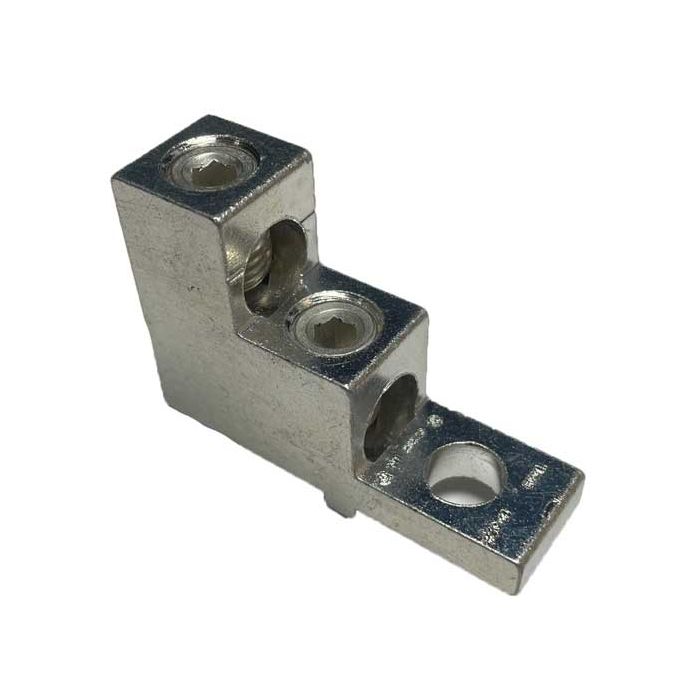

2S2/0-TP-STK2-36-40-HEX 2/0 AWG Double Wire Double Barrel Mechanical lug 2/0-14 AWG, FLEX 1/0-14 AWG

In stock
SKU
2S2-0-TP-STK2-36-40-HEX

"2S2/0-TP-STK2-36-40-HEX" 2/0 AWG Double wire lug, 2/0-14 AWG wire range, and FLEX wire, 1/0-14 AWG, G-K including mm2 class 5, stacker type, two tier lug, double barrel, aluminum or copper wire, CU9AL, 90C temperature rating, single 5/16" bolt mounting hole, UL Listed at 600v - acceptable for use through 2000v, CSA Certified. International Hydraulics Inc® brand. 5/16" Hex Socket Screw. Made in the USA from domestic and imported parts.
UL & Canada Approved for FLEX wire Class G-K sizes 1/0-14 AWG



IEC grounding sybol



Click for Drill your Own Mounting Hole Guide
DIY Modify Mounting Holes: Cat. No. 2S2/0 Style No. 5
CSA and UL permitted field modification by customer per the
Guide for Field Drilling Mounting Holes and the 2S2/0-TP-STK2-36-40-HEX Print



For More Information Click the Icons Below
Click for Mechanical Drawing Click for Agency Label Click for UL Information Click for CSA Certification Certificate of Compliance Click for RoHS Information

RoHS 10/10

$3.74
  • Buy 90 for $2.78 each and save 26%
  • Buy 250 for $2.09 each and save 44%
