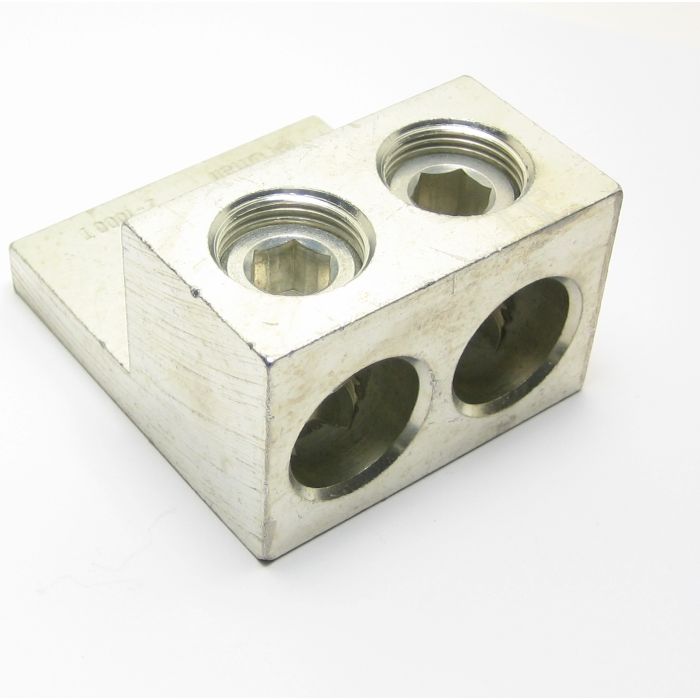

"2-1000T" Double Barrel Wire Lug (500 - 1000 kcmil AWG)
In stock
SKU
2-1000T
2-1000T 500 - 1000 kcmil AWG wire range, 2 barrel aluminum Lug, aluminum or copper wire, CU9AL, 90C temperature rating, 1 mounting hole for 5/8" bolt. NEMA mounting holes and spacing; this is not a NEMA tested part.
UL Listed, CSA Certified.
BMC brand. Made in the USA from domestic and imported parts.
$28.60
- Buy 12 for $21.20 each and save 26%
- Buy 40 for $15.95 each and save 44%
2-1000T 500 - 1000 kcmil AWG wire range, 2 barrel aluminum Lug, aluminum or copper wire, CU9AL, 90C temperature rating, 1 mounting hole for 5/8" bolt, NEMA mounting holes and spacing; this is not a NEMA tested part, UL Listed, CSA Certified. BMC brand. Made in the USA from domestic and imported parts.
Convenient inspection window to visually inspect full conductor insertion
Made with 6061-T6 aluminum to provide maximum electrical contact and performance
Electro tin-plated, to warrant against corrosion
Plated aluminum or steel screw provides durable long lasting contact between the conductor and connector
 |
| For More Information Click the Icons Below | |||||
 |
 |
 |
 |
 |
RoHS 10/10 |
Per Wire in Power Distribution or Collection Mode
|
545 Amp 75C Cu Wire |
|
| 445 Amp 75C Al Wire | |
|
|
| SKU | 2-1000T |
|---|---|
| Number of Wires | 2 Wires |
| Condition | New |
| AWG Wire Range | 1000 - 500 kcmil |
| FLEX Wire Range | No FLEX Wire |
| Screw Type | Hex Socket |
| CSA Canadian Standards Association Certified | Yes |
| UL | UL Listed (UL) |
| Meets RoHS | Yes |
