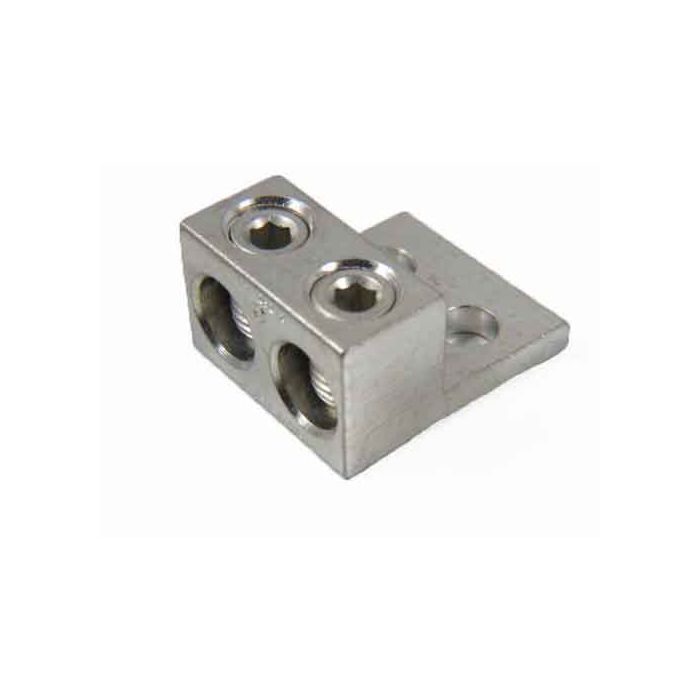

"2S2/0-31-42-HEX-M" Double Wire Lugs (14-2/0 AWG) & FLEX (1/0-14 AWG)
2/0 AWG Metric Double wire lug, 2/0-14 AWG, CU9AL, 90C temperature rating, TURN PREVENT USING TWO 1/4" bolts. UL Listed CSA Certified. Made in the USA.
- Buy 160 for $1.72 each and save 26%
- Buy 500 for $1.29 each and save 44%
2/0 AWG Metric Double wire lug, 2/0-14 AWG wire range, and FLEX wire, 1/0-14 AWG, class G-K including mm2 class 5, double barrel, aluminum or copper wire, Metric Hex socket screw, CU9AL, 90C temperature rating, TURN PREVENT USING TWO 1/4" bolts (hole is .315 +/-.007) mounting holes, UL Listed at 600v - acceptable for use through 2000v, CSA Certified. Made in the USA.
Use of Ferrules (UL Listed) on 1/0-14 AWG
WIRE CONNECTORS AND SOLDERING LUGS (ZMVV) INSTALLATION Wire connectors are intended for use in installations covered by ANSI/NFPA 70, ‘‘National Electrical Code’’ (NEC), and should be installed using the prescribed manufacturer’s installation instructions. "Stacking of connectors (multiple connectors assembled using a single bolt, nut and washers) may be permitted where mechanical interference is reduced or eliminated with the use of offset tangs, stacking adapters, andthe like. The surface contact area of the mounting tang should make completecontact with the mounting surface or the previously stacked connector tang." Ref. UL White Book ZMVV section
|For More Information Click the Icons Below|
|Number of Wires||2 Wires|
|AWG Wire Range||2/0 - 14 AWG|
|FLEX Wire Range||1/0-14 AWG|
|Screw Type||Metric Hex Socket|
|CSA Canadian Standards Association Certified||Yes|
|UL||UL Listed (UL)|
